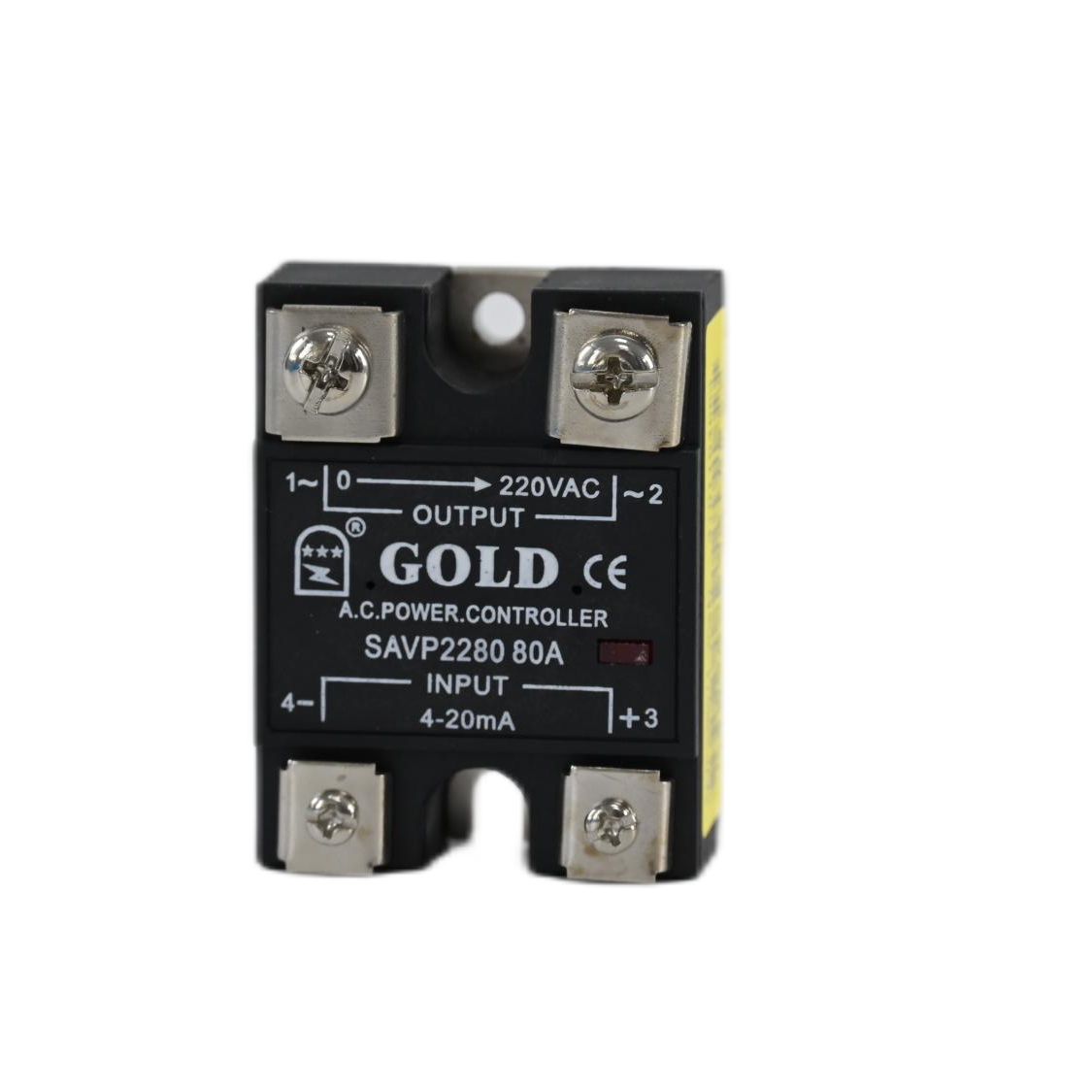

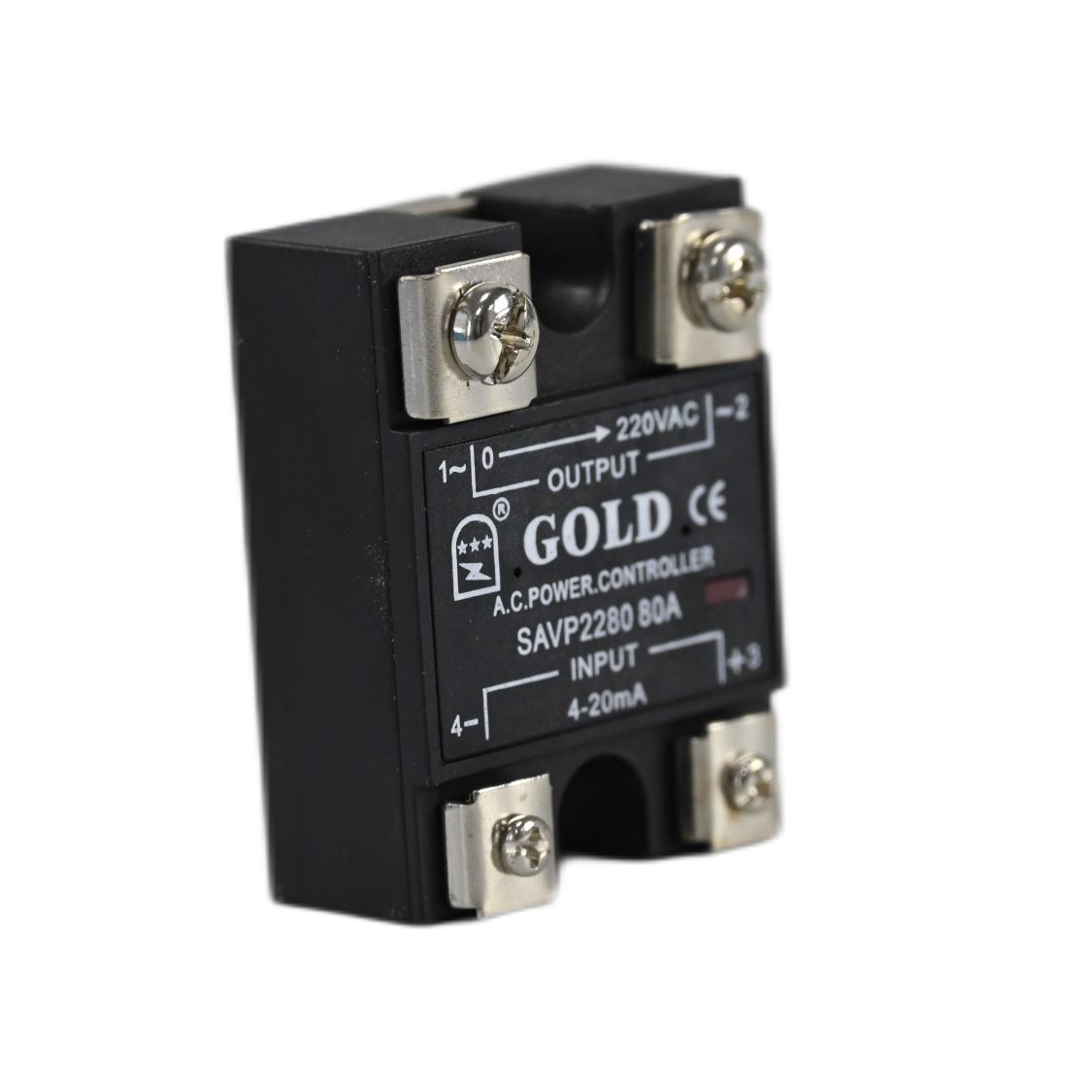

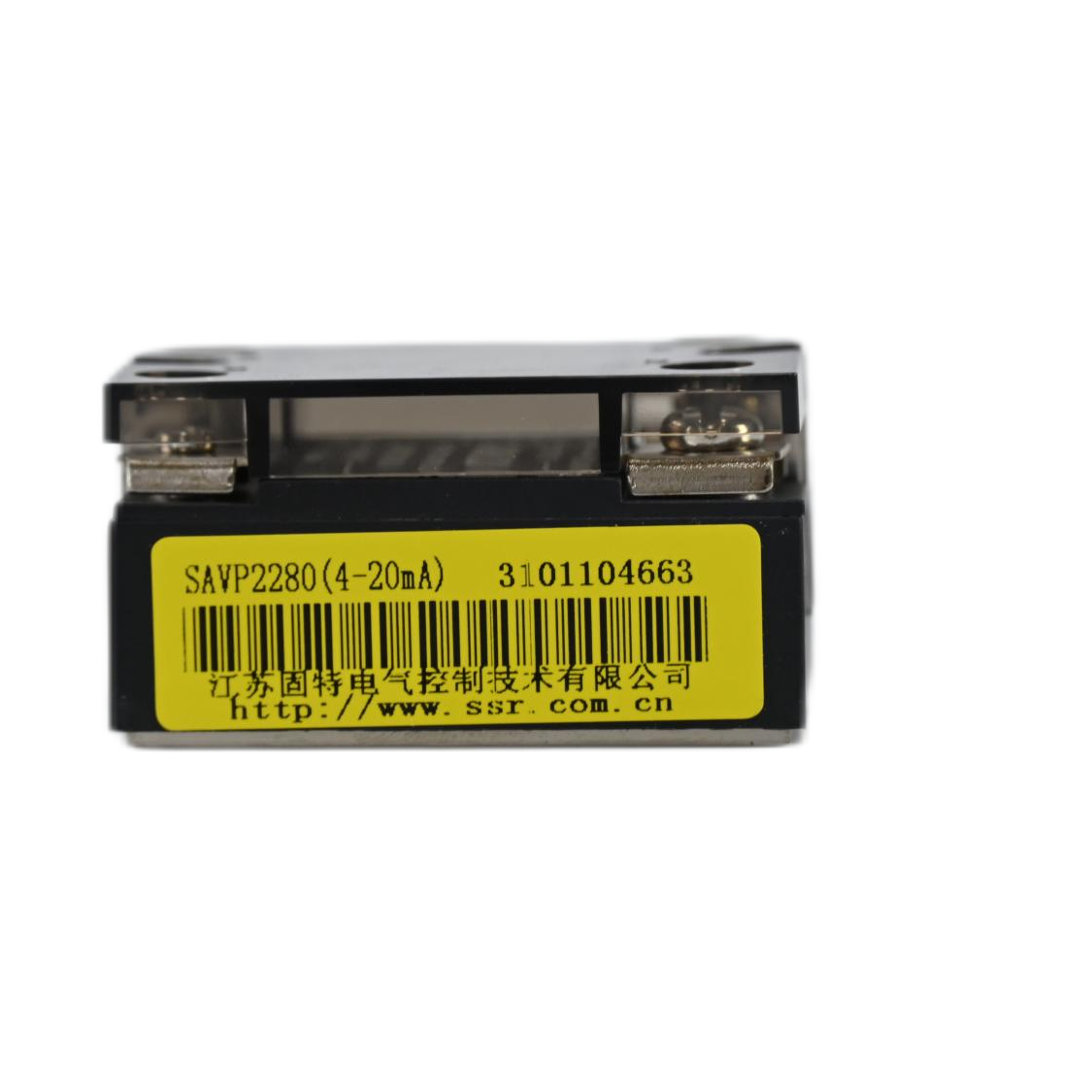

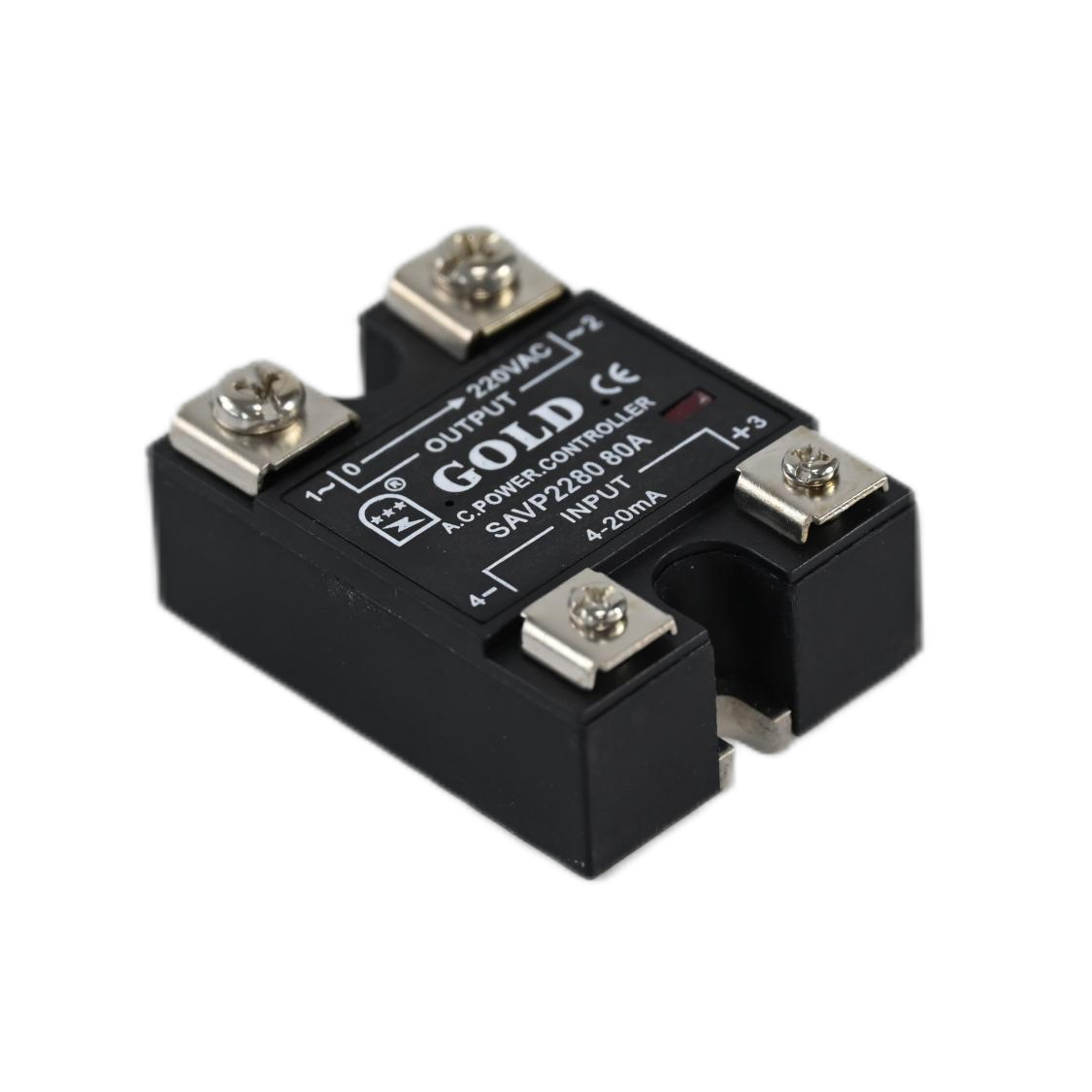

SAVP单相调压模块
SAVP系列单相调压控制器是一种单相交流固态调压器，内部集移相触发电路，阻容吸收回路，可控硅于一体，通过调整控制信号，改变阻性负载电压，来达到调节输出功率。
| 产品型号 | 负载调压 | 负载电流 | 控制方式 | 绝缘隔离 | 负载压降 |
| SAVP2210 | 0-220VAC | 10A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP2215 | 0-220VAC | 15A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP2225 | 0-220VAC | 25A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP2240 | 0-220VAC | 40A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP2260 | 0-220VAC | 60A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP2280 | 0-220VAC | 80A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP22100 | 0-220VAC | 100A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP22120 | 0-220VAC | 120A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3810 | 0-380VAC | 10A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3815 | 0-380VAC | 15A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3825 | 0-380VAC | 25A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3840 | 0-380VAC | 40A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3860 | 0-380VAC | 60A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP3880 | 0-380VAC | 80A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP38100 | 0-380VAC | 100A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
| SAVP38120 | 0-380VAC | 120A | 2-10VDC or 4-20mA | ≥2000VAC | ≤2VAC |
